Description
Features and Benefits
• Measuring range: Particle size from 1nm to 9500nm
• Fast analysis: less than 5 minutes per test.
• Small quantity of sample required: 4ml and 1ml sample cell.
• High-precision temperature control system provides accuracy of ±0.5°C.
• Repeatability: ≤1% (GBRM D50)
• Accuracy: ≤1% (GBRM D50)
• Scattering angle: 90°
• Dynamic light scattering (DLS)
• Detector: PMT (Photomultiplier)
Dynamic light scattering (DLS)

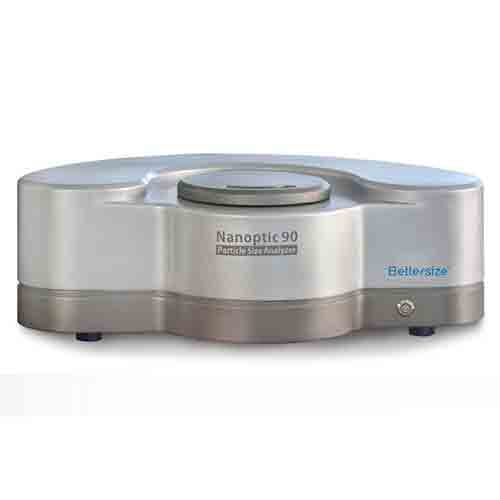

Nanoptic 90 works based on dynamic light scattering (DLS) theory. Dynamic Light Scattering is an ideal method for sizing proteins, colloids, emulsions, nanoparticles, CMPs, inkjet inks, and a variety of other dispersions used in nanotechnology and medicine.
Specification
| General | Nanoptic 90 |
| Theory | Dynamic light scattering |
| Size | |
| Size range | 1-9500nm (in connection with sample) |
| Accuracy | ≤1% (GBRM D50) |
| Analysis Mode | NNSL, Multi-peak and CONTIN |
| Temperature control range of cell | 15℃-90℃ |
| Optics | |
| Red light | 20mW, 635nm, solid laser |
| Detector Type | PMT(Photomultiplier) |
| Scattering angle | 90° |
| Correlator | Physical channels:1000 pcs(Dynamic sampling time and delay time:1-5uS) |
| System | |
| Dispersion type | Wet |
| Concentration range | 0.1-100mg/ml (in connection with sample) |
| Cell volume | 4ml and 1ml |
| Supply voltage | 220VAC, 50/60Hz |
| Dimension | 490*310*230(mm) |
| Weight | 14kg |
| Computer specification | |
| Computer interface | USB2.0 or USB3.0 |
| Operation system | Windows XP, Windows 7,8 or 10 |
