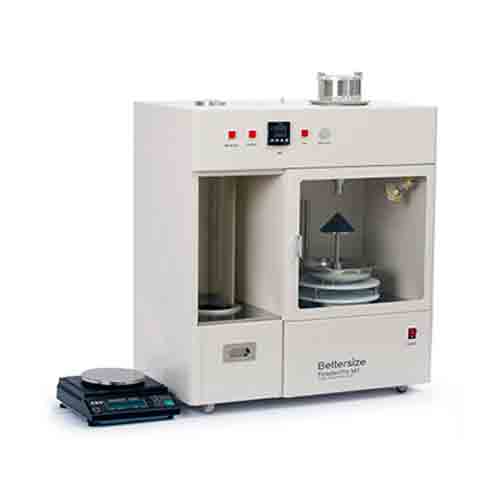

PowderPro-M1

PowderPro M1

(0)

Classic work for powder characteristic analysis

PowderPro M1 is the manual version of the automatic PowderPro A1. It can also perform the same analysis of PowderPro A1 but through a manual process. PowderPro M1 is a good choice for small laboratories and scientific teaching purpose.

Measurement: Angle of Repose, Angle of Collapse, Difference Angle, Flat Plate Angle, Dispersity, Compressibility, Voidage, Bulk Density, Tap Density, Uniformity, Agglutination, Flowability Index, Floodability Index.

Compare

Description

Features

  • Practical and economical powder characteristic tester.
  • Multiple functions, easy operation and good repeatability.

Measurement of tap density and bulk density

PowderPro A1_Features_b

Measurement of angle of repose

PowderPro A1_Features_a



Specification

Standard PowderPro M1
Chinese standard GB/T16913-2008 4.5, GB/T1479.1-2011, GB/T5162-2006
US standard ASTM D6393-14
USP USP32-NF27<616>
EP EP7.0 07/2010:20934
Testing Parameter
Repeatability ≤5%
Drop height 3mm or 14mm
Vibration frequency 50-300 times per minute (continuous adjustment)
Control terminal Manual operation
System
Dimension 580mm x 350mm x 650mm (L x W x H)
Weight 37kg
Power supply AC220V, 50/60Hz, 200W
